How to Change SportDOG Remote Transmitter Modes

Depending on which SportDOG Training Collar you are using, most models have different combinations of features selectable by a number of different operating Modes. These different Modes allow you to customize your SportDOG system to match your training preferences.

Selectable Features: (not all systems have all features)

Continuous Stimulation allows you to control the length of the correction. The stimulation will cut on when you press the button and off when you release it. You can also press the button down and hold it down for a longer stimulation.

Momentary Stimulation is a quick preset "attention getter" that lasts for a fraction of a second, no matter how long the button is held down. On most collars it will cut on and cut off faster than you can press and release the button.

Tone is a quiet sound that can only be heard close to the collar. Read more about TONE.

Vibration can be used for a variety of training applications and silent commands, particularly with deaf dogs. Read more about VIBRATION.

---

How to Change the Transmitter Mode:

NOTE: SportDOG Transmitters are factory set to Mode 1.

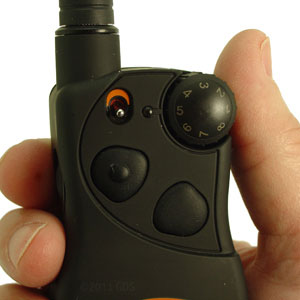

1. Consult your Owner's Manual to see the list of Modes available on your system, and adjust the Intensity Dial to the mode you want to use.

2. Turn the Remote Transmitter over and remove the belt clip (if applicable).

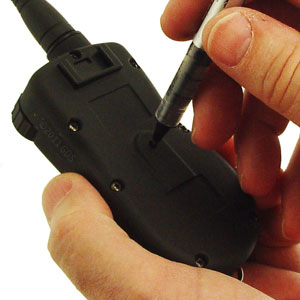

3. With a pen or paperclip, depress and release the button. When the button is pressed, the Transmitter Indicator Light will be solid in color. When it is released, it will flash the mode selected. For example, if mode 5 is desired, adjust the Intensity Dial to Level 5. Once the mode button has been depressed, the Transmitter Indicator Light will be solid, and once the mode button is released, the Transmitter Indicator Light will flash five times.
