Please read all steps before starting.

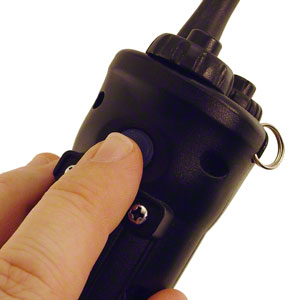

1. Turn on the transmitter by holding down the on/off button on the back of the transmitter.

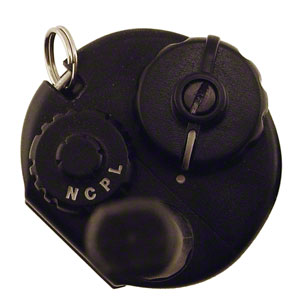

2. Set the Intensity Selection Dial to "0" and the Mode Selection Dial to "C".

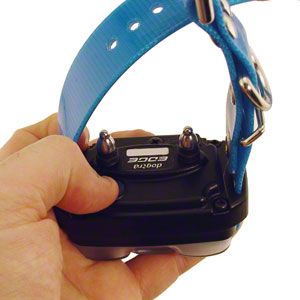

3. In the off position hold down the receiver/collar on/off button until the green LED indicator light begins to blink rapidly.

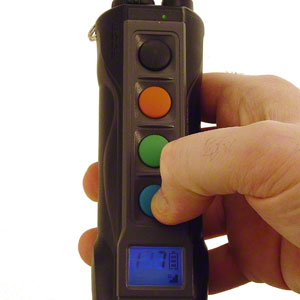

4. Immediately press the button on the transmitter of the color you would like the receiver/collar to be coded to.

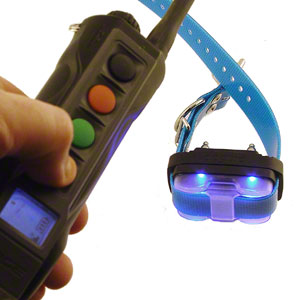

5. Turn the mode selection dial to "P" or "L" and test that the collar has been synched correctly.

NOTE: The location light color on the receiver collar will automatically be set to the corresponding button color when synched to the transmitter. However, after the collar is synched, you have the option of changing the location light color to any of the four available colors: white, red, blue, or green.

---

How to Change the Location Light Color on Dogtra EDGE Receiver Collars

1. Make sure the receiver collar is turned off.



2. Hold down the on/off button on the receiver collar for a full 10 seconds.

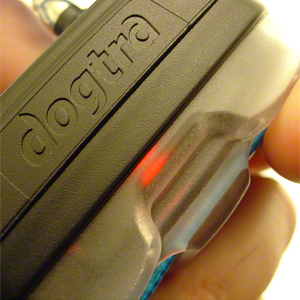

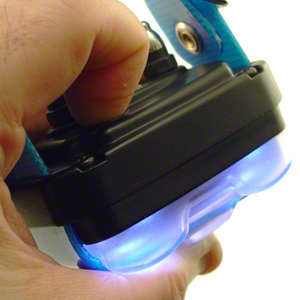

3. Release the on/off button after the white location light flashes rapidly. (The white location light will start flashing after the single small green LED indicator code setting light finishes blinking.)

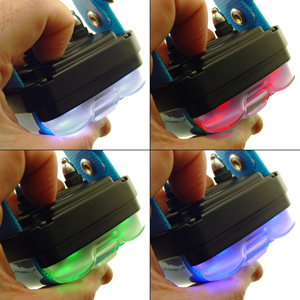

4. The location light colors will cycle twice in the order of white, red, green, and blue. Press the on/off button once when the desired color is lit to select it.


NOTE: The location light color will reset to the corresponding button color if re-synchronized to the transmitter.
