The Dogtra RR Deluxe Remote Release uses a code free design so that you can match one transmitter to up to eight different receivers, controlling up to 16 devices with the left and right ports. Once you have synced the transmitter and receiver, pressing a button on the specific selection dial will only activate the designated receiver. Follow these steps in order to pair your transmitter with each receiver unit.

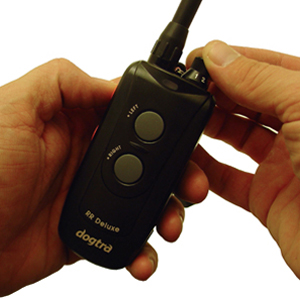

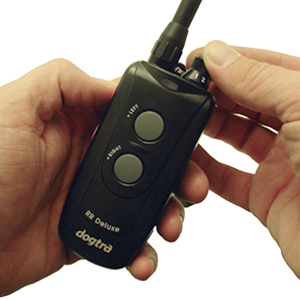

1. Turn the selection dial on the handheld transmitter to the desired number to pair it with the receiver. For example, if you want to designate a receiver as your number 2 receiver, set the selection dial of the transmitter to number 2.

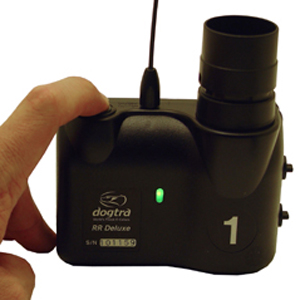

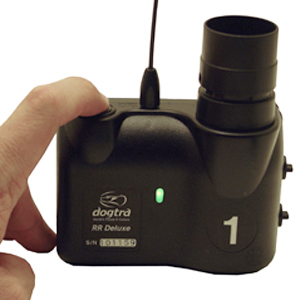

2. Hold down the on/off button of the receiver for 5 seconds or more. Release it when the green LED blinks rapidly.

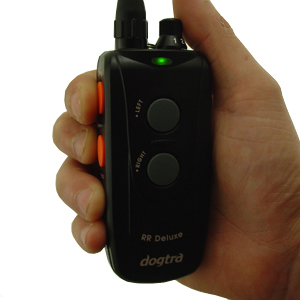

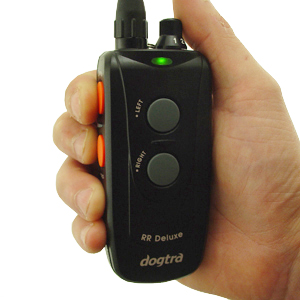

3. Within 5 seconds after releasing the on/off button of the receiver, hold the left and right buttons simultaneously on the handheld transmitter. When the receiver successfully acknowledges the transmitter, the LED on the receiver should emit a constant green light for approximately 3 seconds then switch to slow steady standby blink.

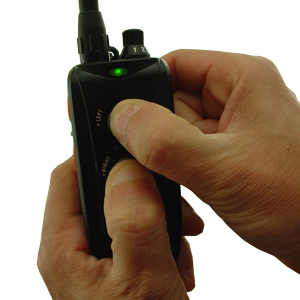

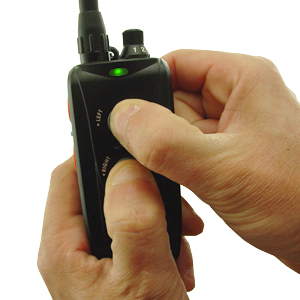

4. Press the duck call or beep sound button on the transmitter. If the receiver emits sound, the receiver is successfully coded to the transmitter. Repeat the process from step 1 if you have additional receivers to be synced.
