The SportDOG Remote Release uses a code-free design so that you can match one transmitter to up to eight different receivers, controlling up to 16 devices with the left and right ports. Once you have synced the transmitter and receiver, pressing a button on the specific selection dial will only activate the designated receiver. Follow these steps in order to pair your transmitter with each receiver unit.

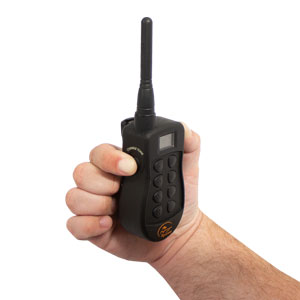

1. Make sure the receiver is turned off and the transmitter is set to Normal Mode.

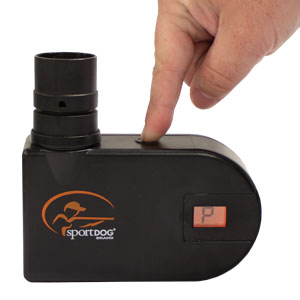

2. Press and hold the receiver's on/off button until it beeps. Keep pressing (about 5 seconds) until a "P" appears on the receiver's LCD screen. The receiver is now in "Program Mode".

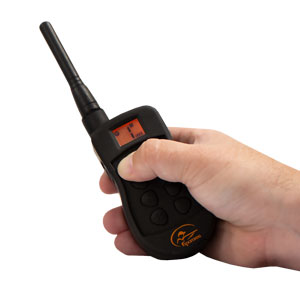

3. Press one of the Launch Signal Buttons (1-4) to assign a number to the receiver.

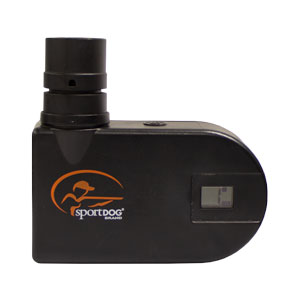

4. The "P" on the receiver will flash, indicating it has accepted the programming signal and a number icon (1-4) will appear in the upper right corner, identifying the receiver's number. All the devices attached to a particular receiver will be launched using that receiver's number.
