"Very well made and solid, built to last."

reviewstars
By: Stanley Lobitz From PA

Hunts. Family pet.
Very well made and solid, built to last. Versatility to launch bumpers as well as live birds with ease. Coupled with the Dogtra release with duck call sounds it has my Toller's undivided attention. It's like Toller crack cocaine. This is the only launcher I'll need for upland and basic retrieve training.

Product Rating: 5 out of 5-stars.
Review ID: 24789
Reviewed: 2015-11-14
"Small, lightweight, and stealth quiet when not using primers."

reviewstars
By: Adam Rushefsky From NJ

Hunts. Family pet.
Use this to launch bumpers and marks in the park near my house. Small, lightweight, and stealth quiet when not using primers. Liberal commie neighbors and the park police don't ever notice it.

Product Rating: 5 out of 5-stars.
Review ID: 27535
Reviewed: 2016-02-26
"Great design and well built."

reviewstars
By: Alan Dolan From NJ

Hunts. Family pet. Competes.
Great design and well built. I expect this to outlast me and it works really well. Have not tried game in it yet but expect it to work equally well.

Product Rating: 5 out of 5-stars.
Review ID: 27840
Reviewed: 2016-03-07
shipping-map
free-shipping
1-800-624-6378

Zinger Winger G4 Uplander with Dogtra Deluxe Remote Release

Perfect for releasing live birds of any size -- Some Assembly Required




List: $639.89
Order Yours: $625.98




IN STOCK

Usually ships the same business day
Code: 5875
No risk to you. Your 100% Satisfaction is Guaranteed with our 30 Day "No Questions" Money Back Guarantee. Hassle-free returns & exchanges.

Loaded Mopix Side View Mopix Front Leg Extended Loaded Mopix Front Leg Extended Mopix Swing Arm Mopix Release Mopix RR Deluxe



The Zinger Winger Company introduces an all-purpose "box style" bird launcher. Whether you have upland bird dogs or hunting retrievers this high-quality training tool does it all. The Uplander Bird Launcher is perfect for releasing live birds of any size (ducks, pheasants, quail, pigeons) but can also throw Dokkens, dead birds, and large/small bumpers when training your dog to mark.

This premium launcher is constructed of welded lightweight aluminum and is made to last a lifetime. Launch angle and distance of throw is easily adjusted. Each launcher uses our exclusive Sure-Shot Sound release for safety and reliability. The Uplander G4 is capable of firing 209 primers.

The Uplander is designed to be used with the SportDOG, Tri-Tronics, or Dogtra remote release system.

Size and Weight The frame measures 8" x 16" x 18" and weight 8 pounds. The overall measurements including extended arms are 16" x 16" x 8". Some assembly required.

Arc and Throw Shorter throws can be obtained using only 2 springs. Maximum throws at the launchers set angled position (using 4 springs). Note: When using all 4 springs this launcher requires a strong able-bodied person to cock and load. when using 2 springs the launcher requires less effort to load.

Ducks: 30 feet (10 yards)

Dokkens: 45 feet (15 yards)

Large Bumper: 50 feet (17 yards)

Small Bumper: 60 feet (20 yards)

DOGTRA DELUXE REMOTE RELEASE

Dogtra's RR Deluxe electronic remote release system features two sound modes: authentic Mallard duck-call attention getter or a beep-locater sound. The Dogtra RR Deluxe will run up to eight different receivers off one transmitter, and each receiver can operate two launchers with the use of a 15 foot jumper cord (not included), giving you control of up to a total of 16 launchers! The Dogtra RR Deluxe is compatible with Thunder Equipment, Dogtra, Zinger Winger, Etch-Marc, and most other after-market bird / bumper launcher systems. The remote release system has 1,000 yard range. The attention-getter sound has a 100 yard range (range may vary with weather conditions).

Uses long lasting rechargeable Ni-Mh batteries (charger included) with 3 color battery life indicator. Transmitter is waterproof, and receivers are water resistant.

Zinger Winger G4 Uplander Assembly Instructions

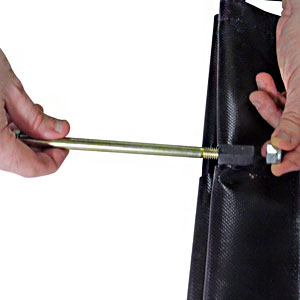

1. Insert the swing arm into the bushing on the pouch arm. Thread the locking nut and tighten.
WARNING: Failure to securely tighten this part can result in severe injury.

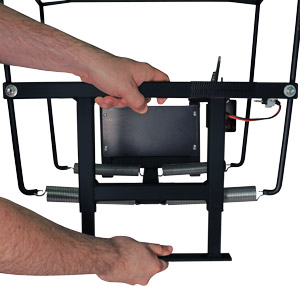

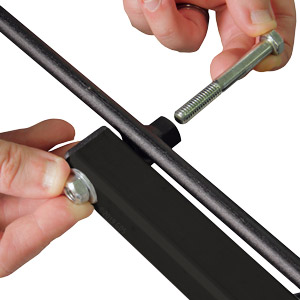

2. Align the metal arm bushings to the box frame holes and install all four bolts and lock nuts. Make sure the bolts are facing inside and the nuts are facing outside. Tighten the bolts so that the metal arms still pivot freely.




3. Loop one end of the spring through each end of the metal arm assembly. Repeat with the other springs.

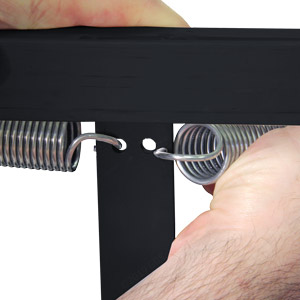

4. The free end of the springs can now be connected through the holes located on the brace of the box frame.

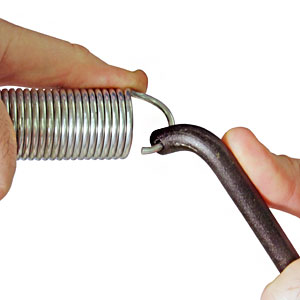

NOTE: You may need to use pliers or vise grips to loop the spring ends through the holes.

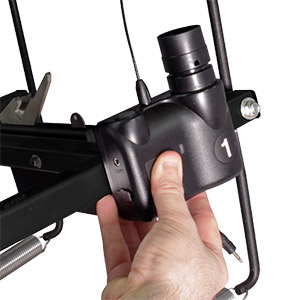

5. Attach the strip of RecieverLok to the back of your remote and press the two mating surfaces together. Ensure the remote receiver's antenna will not interfere with the metal arms of the launcher when activated.

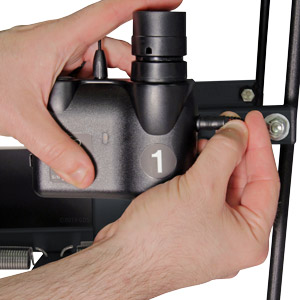

6. Attach the electronic plug into the reciever.




7. An extension leg is provided if you require an angled launch.




 shop Loaded Mopix
 shop Side View Mopix
 shop Front Leg Extended Loaded Mopix
 shop Front Leg Extended Mopix
Loaded Mopix
Side View Mopix
Front Leg Extended Loaded Mopix
Front Leg Extended Mopix
 shop Swing Arm Mopix
 shop Release Mopix
 shop RR Deluxe
Swing Arm Mopix
Release Mopix
RR Deluxe


Zinger Winger G4 Uplander with Dogtra Deluxe Remote Release
Item # 5875
List: $639.89
Order Yours: $625.98




Usually ships the same business day
  • You save $13.91

  • Free Shipping (US only)
