Original extra collar for the SportDOG SD 1225X, SD 1275E, SD 1825X, and SD 2525. Includes 3/4" green collar strap that fits up to a 23" neck, short and long contact points, charger and owners manual.
Synchronizing a Replacement Collar Receiver to your Transmitter

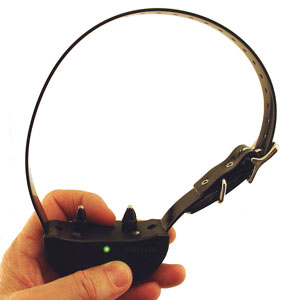

1. Turn the Collar Receiver off.

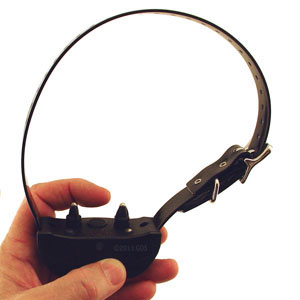

2. Press and hold the On/Off Button. The Receiver Indicator Light will come on, then turn off in 4-5 seconds. If the On/Off Button is released too early, the Receiver Indicator Light will begin its normal flashing. If this occurs, start over and repeat from step 1.
3. After the Receiver Indicator Light has turned off, release the On/Off Button.

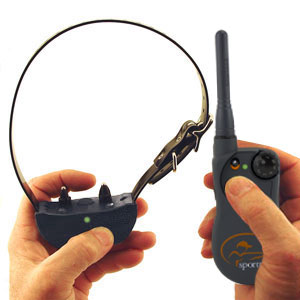

4. Press and hold the Upper Button on the Remote Transmitter until the Receiver Indicator Light flashes 5 times. You may need to hold both units 2-3 feet from each other. If the Receiver Indicator Light does not flash 5 times, start over and repeat from step 1.
How to Program the Collar for Two-Dog Operation with the SD-1825X
1. Program the Remote Transmitter to mode 1, 2, 5, 6, or 7 with the toggle UP or any mode with the toggle DOWN.
(Consult the Owners Manual for more information on Transmitter Modes.)
A. Set the Intensity Dial and Toggle to the selected mode.
B. Turn the Remote Transmitter over.
C. With a pen or paperclip, depress and release the mode button.
D. When the mode button is pressed, the Transmitter Indicator Light will be solid in color. When it is released, it will flash the same number of times as the mode selected.
2. Program the first Collar Receiver:
A. Turn the Collar Receiver off.
B. Press and hold the On/Off Button. The Receiver Indicator Light will come on, then turn off in 4-5 seconds. If the On/Off Button is released too early, the Receiver Indicator Light will begin its normal flashing. If this occurs, start over and repeat from A.
C. After the Receiver Indicator Light has turned off, release the On/Off Button.
D. With the toggle in the UP position, press and hold the Upper Button on the Remote Transmitter until the Receiver Indicator Light flashes 5 times. You may need to hold both units 2-3 feet from each other before this occurs. If the receiver light does not flash 5 times, start over and repeat from A.
3. Program the second Collar Receiver the same way using A through D above, but with the toggle in the DOWN position.
How to Program the Collar for Three-Six Dog Operation with the SD-1825X
1. Program the Remote Transmitter to mode 3 or 4 with the toggle UP.
(Consult the Owners Manual for more information on Transmitter Modes.)
A. Set the Intensity Dial and Toggle to the selected mode.
B. Turn the Remote Transmitter over.
C. With a pen or paperclip, depress and release the mode button.
D. When the mode button is pressed, the Transmitter Indicator Light will be solid in color. When it is released, it will flash the same number of times as the mode selected.

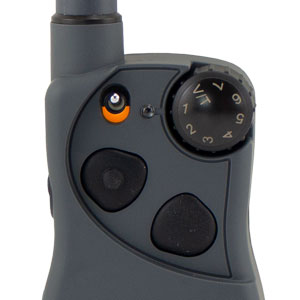

2. Flip the toggle switch to the UP position.
3. Program the first Collar Receiver:
A. Turn the Collar Receiver off.
B. Press and hold the On/Off Button. The Receiver Indicator Light will come on, then turn off in 4-5 seconds. If the On/Off Button is released too early, the Receiver Indicator Light will begin its normal flashing. If this occurs, start over and repeat from A.
C. After the Receiver Indicator Light has turned off, release the On/Off Button.
D. Press and hold the Upper Button on the Remote Transmitter until the Receiver Indicator Light flashes 5 times. You may need to hold both units 2-3 feet from each other before this occurs. If the receiver light does not flash 5 times, start over and repeat from A.
4. Program the second Collar Receiver the same way using A through D above, but using the Lower Button in place of the Upper Button.
5. Program the third Collar Receiver the same way using A through D above, but using the Side Button in place of the Upper Button.
6. Flip the toggle switch to the DOWN position.
7. Repeat steps 3, 4, and 5 above to program collars four, five, and six.
How to Program the Collar for Multi-Dog Operation with the SD-1225X
1. Program the Remote Transmitter to mode 3 or 4.
(Consult the Owners Manual for more information on Transmitter Modes.)
A. Set the Intensity Dial to the selected mode.
B. Turn the Remote Transmitter over.
C. With a pen or paperclip, depress and release the mode button.
D. When the mode button is pressed, the Transmitter Indicator Light will be solid in color. When it is released, it will flash the same number of times as the mode selected.
2. Program the first Collar Receiver:
A. Turn the Collar Receiver off.
B. Press and hold the On/Off Button. The Receiver Indicator Light will come on, then turn off in 4-5 seconds. If the On/Off Button is released too early, the Receiver Indicator Light will begin its normal flashing. If this occurs, start over and repeat from A.
C. After the Receiver Indicator Light has turned off, release the On/Off Button.
D. Press and hold the Upper Button on the Remote Transmitter until the Receiver Indicator Light flashes 5 times. You may need to hold both units 2-3 feet from each other before this occurs. If the receiver light does not flash 5 times, start over and repeat from A.
3. Program the second Collar Receiver the same way using A through D above, but using the Lower Button in place of the Upper Button.
4. Program the third Collar Receiver the same way using A through D above, but using the Side Button in place of the Upper Button.
I purchased this add-a-collar to replace one other add-a-collar (SDR-AW) I purchased several years ago after it stopped working ( would charge but no any longer communicate with my 1225 hand held unit) to go with my original 1225 hand held unit which I also purchased several years ago (I run 3 upland dogs at a time). After I programmed the new SDR-AX collar to operate with my existing 1225 hand held unit the new collar as well as the original collar that came with my original 1225 unit as well as a second add-a-collar (SDR-AW) I had also purchased several years ago as well, all three (3) collar receivers operate perfectly with my original SportDog 1225 hand held unit. I am well pleased with the operation of the new the performance of my new SDR-AX add-a-collar. Now that I figured out it is the original add-a-collar that has the communication issue I wish I could find out how to get it repaired as well.
Thank you
Tim McGuffin
Country of Origin: Made in China.
